Name: juki 2080M2080L
Brand: YAMAHA
Price: 1 USD

Brand Name : YAMAHA

Model Number : juki 2080M2080L

Certification : juki 2080M2080L

Place of Origin : China

MOQ : 1

Payment Terms : 1

Packaging Details : China

Contact Now

Product name:juki 2080M 2080L

Scope of application: Yamaha Feida accessories

Related products:

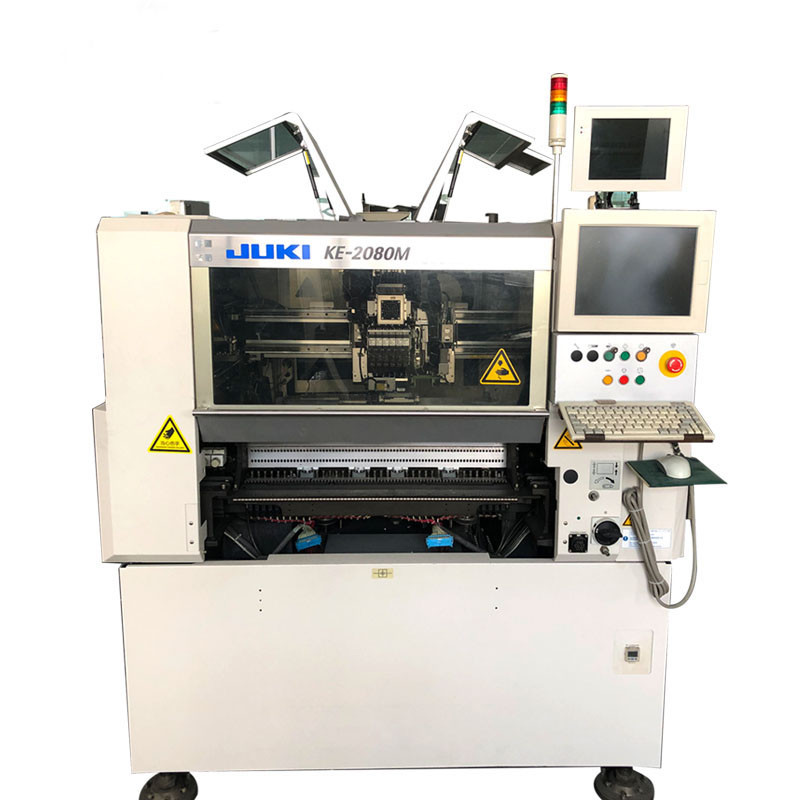

SMT Full Automatic High Speed pick and place machine JUKI Chip Mounter KE 2080M

Model KE 2080M

Board size (330×250mm)

Component height 6MM

Laser recognition 0402~33.5mm

Standard camera 3mm~74mm or 50×150mm

High-resolution camera (option) 1.0×0.5mm3~48mm or 24×72mm

Placement speed 0.178Sec./chip(20,200CPH)

Vision recognition ±0.03mm (±0.04mm when using MNVC)

Feeder inputs Max. 80 on 8mm T/F6

Power supply 200 to 415 VAC, 3-phase

Apparent power 3kVA

Operating air pressure 0.5±0.05Mpa

Air consumption 403L/min (Opt.:Vacuum Pump 50L/min)

Machine dimensions 1,400×1,393×1,455mm

Weight 1,540kg
